最高压力：1.5MPa
最高温度：120℃
最高转速：1000rpm(普通型)3000rpm(高速型)

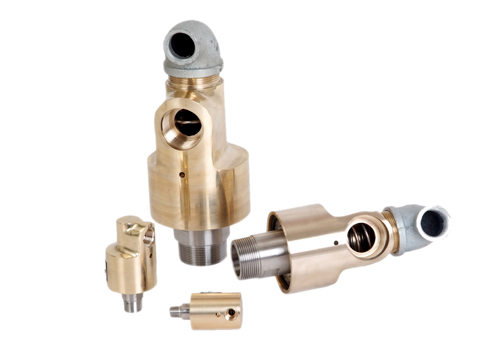

适用介质：水、液压油、冷却剂、真空、压缩气体等HS-G/HS-GF/HS-X/HS-XF型
|

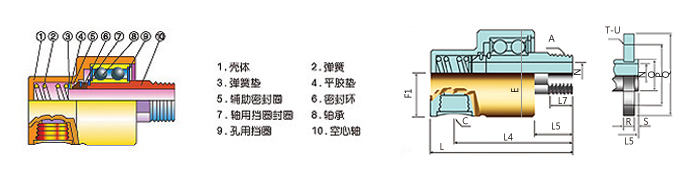

规格
|
A
|
B
|
C
|
D
|
E
|
F1
|
F2
|
K
|
L
|
L1
|
L3
|
L4
|
L6
|
L7
|
N
|
O
|
P
|
Q
|
R
|
S
|
T
|
U
|
|
15
|
R1/2
|
G1/8 10
|
Rc1/2
|
Rc3/8
|
55
|
28
|
25
|
15
|
147 160
|
135 148
|
125 138
|
90 103
|
30 43
|
18
|
12
|
26
|
65
|
95
|
14
|
8
|
4
|
14
|
|
20
|
R3/4
|
G1/4 12
|
Rc3/4
|
Rc1/2
|
62
|
31
|
30
|
32
|
170 187
|
155 172
|
140 157
|
95 112
|
30 47
|
20
|
16
|
32
|
75
|
105
|
16
|
8
|
4
|
14
|
|
25
|
R1
|
G3/8 16
|
Rc1
|
Rc1/2
|
74
|
37
|
33
|
26
|
175 190
|
160 175
|
145 160
|
103 119
|
33 49
|
20
|
20
|
36
|
85
|
115
|
16
|
10
|
4
|
14
|
|
32
|
R1-1/4
|
G1/2 20
|
Rc1-1/4
|
Rc1/2
|
90
|
45
|
38
|
32
|
211 226
|
196 211
|
182 197
|
128 143
|
42 57
|
25
|
30
|
46
|
100
|
140
|
18
|
12
|
4
|
18
|
|
40
|
R1-1/2
|
G3/4 25
|
Rc1-1/2
|
Rc3/4
|
95
|
48
|
43
|
36
|
232 249
|
210 227
|
185 202
|
130 147
|
40 57
|
25
|
35
|
52
|
110
|
150
|
18
|
12
|
4
|
18
|
|
50
|
R2
|
G 30
|
Rc2
|
Rc1
|
122
|
61
|
51
|
46
|
300 305
|
278 283
|
255 260
|
182 187
|
60 65
|
35
|
48
|
60
|
125
|
165
|
20
|
15
|
4
|
18
|
|
65
|
R2-1/2
|
G1-1/4 40
|
Rc2-1/2
|
Rc1-1/4
|
156
|
78
|
62
|
50
|
350 358
|
325 333
|
295 303
|
211 219
|
68 76
|
40
|
62
|
75
|
145
|
185
|
20
|
18
|
4
|
18
|
